How The Sublime Vishnu Temple At Angkor Wat Is An Expression Of Vedic Astronomy

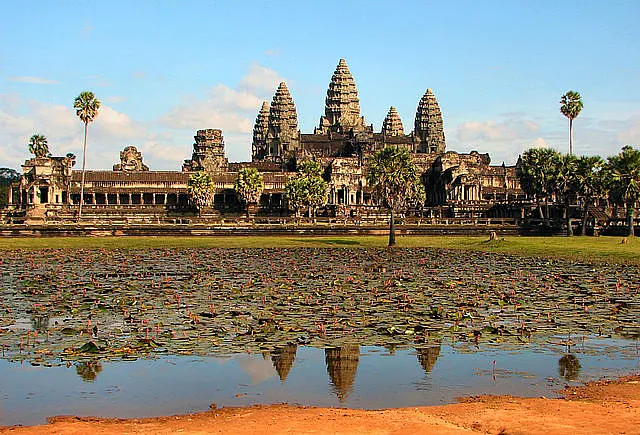

Angkor Wat, the front side of the main complex (Bjørn Christian Tørrissen/Wikimedia Commons)
Snapshot
  • The great Visnu temple at Angkor Wat in north-central Kampuchea (Cambodia) is known to have been built according to an astronomical plan.

    The astronomy of Angkor Wat has the lesson that the medieval and ancient Indian temple complexes should be examined for their astronomical bases.

The great Visnu temple of Angkor Wat was built by the Khmer Emperor Suryavarman II, who reigned during AD 1113-50. This temple was one of the many temples built from AD 879-1191, when the Khmer civilisation was at the height of its power. The Visnu temple has been called one of humankind’s most impressive and enduring architectural achievements.

More than 20 years ago, Science carried a comprehensive analysis by Stencel, Gifford and Morón (SGM) of the astronomy and cosmology underlying the design of this temple. The authors concluded that it served as a practical observatory where the rising sun was aligned on the equinox and solstice days with the western entrance of the temple, and they identified 22 sighting lines for seasonally observing the risings of the sun and the moon. Using a survey by Nafilyan and converting the figures to the Cambodian cubit or hat (0.435 m), SGM demonstrated that certain measurements of the temple record calendric and cosmological time cycles.

In addition, SGM showed that the west-east axis represents the periods of the yugas. The width of the moat is 439.78 hat; the distance from the first step of the western entrance gateway to balustrade wall at the end of causeway is 867.03 hat; the distance from the first step of the western entrance gateway to the first step of the central tower is 1,296.07 hat; and the distance from the first step of bridge to the geographic center of the temple is 1,734.41 hat. These correspond to the periods of 4,32,000, 864,000, 1,296,000, 1,728,000 years for the Kali, Dvapara, Treta, and Krta yuga, respectively. SGM suggest that the very slight discrepancy in the equations might be due to human error or erosion or sinking of the structure.

Advertisement

In the central tower, the topmost elevation has external axial dimensions of 189.00 hat east-west, and 176.37 hat north-south, with the sum of 365.37. In the words of SGM, this is “perhaps the most outstanding number” in the complex, “almost the exact length of the solar year.” But SGM were not able to explain the inequality of the two halves, which is the problem that we take up in this paper. We will show that these numbers are old Satapatha Brahmana numbers for the asymmetric motion of the sun.

The Historical Background of Angkor Wat

The kings of the Khmer empire ruled over a vast domain that reached from what is now southern Vietnam to Yunan, China and from Vietnam westward to the Bay of Bengal. The structures one sees at Angkor today, more than 100 temples in all, are the surviving religious remains of a grand social and administrative metropolis whose other buildings - palaces, public buildings, and houses - were all built of wood and are long since decayed and gone. As in most parts of India, where wood was plentiful, only the gods had the right to live in houses of stone or brick; the sovereigns and the common folk lived in pavilions and houses of wood.

Advertisement

Over the half-millenia of Khmer rule, the city of Angkor became a great pilgrimage destination because of the notion of Devaraja, which has been explained by Lokesh Chandra as a coronation icon. Jayavarman II (802-850) was the first to use this royal icon. According to Lokesh Chandra,

Devaraja means ‘King of the Gods’ and not ‘God-King’. He is Indra and refers to the highly efficacious aindra mahabhiseka of the Rgvedic rajasuya tradition as elaborated in the Aitareyabrahmana. It was not a simple but a great coronation, a mahabhiseka. It was of extraordinary significance that Jayavarman II performed a Rgvedic rite, which lent him charismatic authority.

The increasingly larger temples built by the Khmer kings continued to function as the locus of the devotion to the Devaraja, and were at the same time earthly and symbolic representations of mythical Mt Meru, the cosmological home of the Hindu gods and the axis of the world-system. The symbol of the king’s divine authority was the sign (linga) of Siva within the temple’s inner sanctuary, which represented both the axes of physical and the psychological worlds. The worship of Siva and Visnu separately, and together as Harihara, had been popular for considerable time in southeast Asia; Jayavarman’s chief innovation was to use ancient Vedic mahabhiseka to define the symbol of government. To quote Lokesh Chandra further,

The icon used by Jayavarman II for his aindra mahabhiseka, his Devaraja = Indra (icon), became the symbol of the Cambodian state, as the sacred and secular sovereignty denoted by Prajapatısvara/Brahma, as the continuity of the vital flow of the universal (jagat) into the stability of the terrestrial kingdom (raja = rajya). As the founder of the new Kambuja state, he contributed a national palladium under its Cambodian appellation kamraten jagat ta raja/rajya. Whenever the capital was transferred by his successors, it was taken to the new nagara, for it had to be constantly in the capital.

Angkor Wat is the supreme masterpiece of Khmer art. The descriptions of the temple fall far short of communicating the great size, the perfect proportions and the astoundingly beautiful sculpture that everywhere presents itself to the viewer.

As an aside, it should be mentioned that some European scholars tended to date Angkor Wat as being after the fourteenth century. The principal reason was that some decorative motifs at Angkor Wat show a striking resemblance to certain motifs of the Italian Renaissance. This argument, which is similar to the one used in dating Indian mathematical texts vis-a-vis Greek texts, has been proven to be wrong. In the words of Cœdes, “If there is some connexion between the twelfth-century art of the Khmers, the direct heirs to the previous centuries, and the art of the Renaissance, it must have been due to a reverse process, that is to the importation of oriental objects into Europe.”

Astronomy of Altars and Temples

To understand the astronomical aspects of Angkor Wat, it is necessary to begin with the Indian traditions of altar and temple design on which it is based. And since the Angkor Wat ritual hearkened to the Vedic past, it stands to reason that its astronomy was also connected to the Vedic astronomical tradition.

In a series of publications I have shown that the Vedic altars had an astronomical basis. In the basic scheme, the circle represented the earth and the square represented the heavens or the deity. But the altar or the temple, as a representation of the dynamism of the universe, required a breaking of the symmetry of the square. As seen clearly in the agnicayana and other altar constructions, this was done in a variety of ways. Although the main altar might be square or its derivative, the overall sacred area was taken to be a departure from this shape. In particular, the temples to the goddess were drawn on a rectangular plan. In the introduction to the Silpa Prakasa, a ninth-twelfth century Orissan temple architecture text, Alice Boner writes, “[the Devı temples] represent the creative expanding forces, and therefore could not be logically be represented by a square, which is an eminently static form. While the immanent supreme principle is represented by the number ONE, the first stir of creation initiates duality, which is the number TWO, and is the producer of THREE and FOUR and all subsequent numbers upto the infinite.” The dynamism is expressed by a doubling of the square to a rectangle or the ratio 1:2, where the garbhagrha is now built in the geometrical centre. For a three-dimensional structure, the basic symmetry-breaking ratio is 1:2:4, which can be continued further to another doubling.

The constructions of the Harappan period (2,600-1,900 BC) appear to be according to the same principles. The dynamic ratio of 1:2:4 is the most commonly encountered size of rooms of houses, in the overall plan of houses and the construction of large public buildings. This ratio is also reflected in the overall plan of the large walled sector at Mohenjo Daro called the citadel mound. It is even the most commonly encountered brick size.

There is evidence of temple structures in the Harappan period in addition to iconography that recalls the goddess. Structures dating to 2000 BC, built in the design of yantras, have been unearthed in northern Afghanistan. There is ample evidence for a continuity in the religious and artistic tradition of India from the Harappan times, if not earlier. These ideas and the astronomical basis continued in the architecture of the temples of the classical age. Kramrisch has argued that the number 25,920, the number of years in the precessional period of the earth, is also reflected in the plan of the temple.

According to the art-historian Alice Boner,

[T]he temple must, in its space-directions, be established in relation to the motion of the heavenly bodies. But in as much as it incorporates in a single synthesis the unequal courses of the sun, the moon and the planets, it also symbolises all recurrent time sequences: the day, the month, the year and the wider cycles marked by the recurrence of a complete cycle of eclipses, when the sun and the moon are readjusted in their original positions, anew cycle of creation begins.

It is clear then that the Hindu temple is a conception of the astronomical frame of the universe. In this conception, it serves the same purpose as the Vedic altar, which served to express the motions of the sun and the moon. The progressive complexity of the classical temple was inevitable given an attempt to bring in the cycles of the planets and other ideas of the yugas into the scheme.

A text like the Silpa Prakasa would be expected to express the principles of temple construction of the times that led to the Angkor Wat temple. Given the prominence to the yuga periods in Angkor Wat and a variety of other evidence, it is clear that there is a continuity between the Vedic and Puranic astronomy and cosmology and the design of Angkor Wat.

Solar and lunar measurements

Some of the solar and lunar numbers that show up in the design of the Angkor Wat temple are the number of naksatras, the number of months in the year, the days in the lunar month, the days of the solar month, and so so. Lunar observations appear to have been made from the causeway. SGM list 22 alignments in their paper, these could have been used to track not just the solar and lunar motions but also planetary motions.

The division of the year into the two halves: 189 and 176.37 has puzzled SGM. But precisely the same division is described in the Satapatha Brahmana. In layer 5 of the altar described in the Satapatha, a division of the year into the two halves in the proportion 15:14 is given. This proportion corresponds to the numbers 189 and 176.4, which are just the numbers used at Angkor Wat.

Consider the physics behind the asymmetry in the sun’s orbit. The period from the autumnal equinox to the vernal equinox is smaller than the opposite circuit. The interval between successive perihelia, the anomalistic year, is 365.25964 days, which is 0.01845 days longer than the tropical year on which our calendar is based. In 1,000 calendar years, the date of the perihelion advances about 18 days. The perihelion was roughly on 18 December during the time of the construction of Angkor Wat; and it was on 27 October during early second millennium BC, the most likely period of the composition of the Satapatha Brahmana. In all these cases, the perihelion occurs during the autumn/winter period, and so by Kepler’s 2nd law we know that the speed of the sun in its orbit around the earth is greater during the months of autumn and winter than in spring and summer.

During the time of the Satapatha Brahmana, the apogee was about midway through the spring season, which was then somewhat more than 94 days. The extra brick in the spring quadrant may symbolically reflect the discovery that this quarter had more days in it, a discovery made at a time when a satisfactory formula had not yet been developed for the progress of the sun on the ecliptic.

It is possible that the period from the spring equinox to the fall equinox was taken to be about 189 days by doubling the period of the spring season; 176 days became the period of the reverse circuit.

Why not assume that there was no more to these numbers than a division into the proportions 15:14 derived from some numerological considerations? First, we have the evidence from the Satapatha Brahmana that expressly informs us that the count of days from the winter to the summer solstice was different, and shorter, than the count in the reverse order. Second, the altar design is explicitly about the sun’s circuit around the earth and so the proportion of 15:14 must be converted into the appropriate count with respect to the length of the year. Furthermore, the many astronomical alignments of the Angkor Wat impress on us the fairly elaborate system of naked-eye observations that were the basis of the temple astronomy.

But since precisely the same numbers were used in Angkor Wat as were mentioned much earlier in the Satapatha Brahmana, one would presume that these numbers were used as a part of ancient sacred lore. We see the count between the solstices has been changing much faster than the count between the equinoxes because the perigee has been, in the past two thousand years, somewhere between the autumn and the winter months. Because of its relative constancy, the count between the equinoxes became one of the primary ‘constants’ of Vedic/Puranic astronomy.

The equinoctial half-years are currently about 186 and 179, respectively, and were not much different when Angkor Wat temple was constructed. Given that the length of the year was known to considerable precision, there is no reason to assume that these counts were not known. But it appears that a ‘normative’ division according to the ancient proportion was used.

As it was known that the solar year was about 365.25 days, the old proportion of 15:14 would give the distribution 188.92 and 176.33, and that is very much the Angkor Wat numbers of 189 and 176.37 within human error. In other words, the choice of these ‘constants’ may have been determined by the use of the ancient proportion of 15:14.

Conclusions

It has long been known that the Angkor Wat temple astronomy is derived from Puranic and Siddhantic ideas. Here we present evidence that takes us to the Vedic roots for the division of the solar year in Angkor Wat into two unequal halves. This division is across the equinoxes and that number has not changed very much during the passage of time from the Brahmanas to the construction of the Angkor Wat temple, so it is not surprising that it figures so prominently in the astronomy. It also appears that the count of 189 days may have been obtained by doubling the measured period for the spring season.

The astronomy of Angkor Wat has the lesson that the medieval and ancient Indian temple complexes, which were also built with basic astronomical observations in mind, should be examined for their astronomical bases.

This piece was first published as a paper titled ‘The Solar Numbers in Angkor Wat’ on arXiv and has been republished here with permission.
